HDG Tank
Hot Dipped Galvanized For Hydrant Tank
Introduction

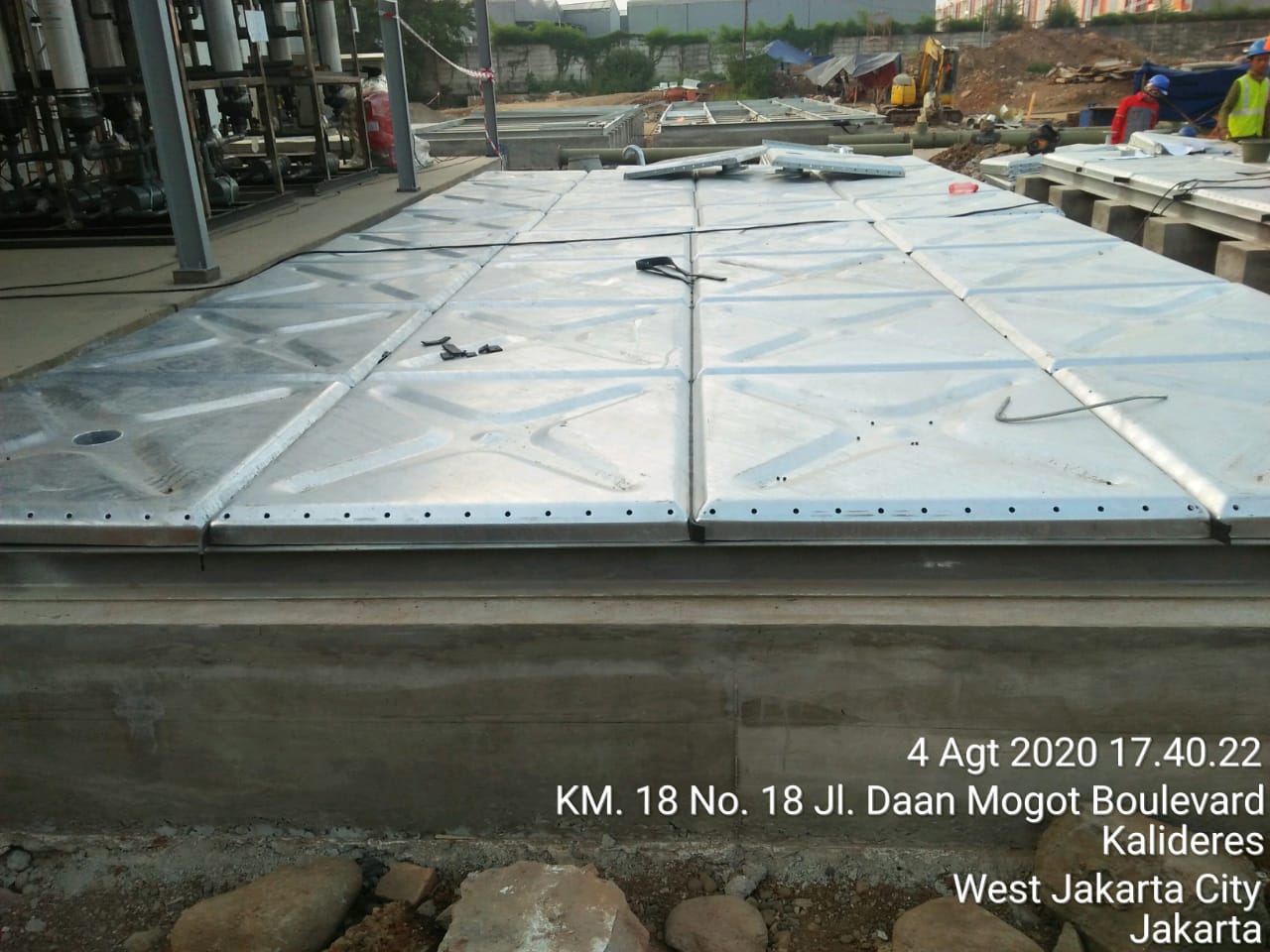

iSE Hot dipped galvanized steel water tank use special slab. The 1000T hydraulic press mould made into different size slab (1.0x1.0m, 1.0x0.5m, 0.5x0.5m), use bolt, rubber strip to connect into different specifications and forms.
Hoot dip galvanized steel water tank is anti-corrotion, anti-aging, no distortion, no infiltration and leakage. Tank is easy to clean and conveniently to install and assemble. It can storage not only hot water, but also cold water, and has a better shockproff and shock resistant ability.
Technical Specification
Design
Material
The Panel is made by hydraulic press mould, available in hot dipped galvanized (HDG Steel) and Stainless Steel.
Panel size available in 1000x1000mm, 1000x500mm, and 500x500mm.
Panel thickness from 2.0mm-5.5mm. It is different according to the tank dimension.Flanges
The sectional panels are pressed with double flanges at the angles of 45 degree and 90 degree toward the face of the plate on four sides.Reinforcement Method
All tanks are internally reinforced to make sure rigidity of the tank when filled with the water. The Top panel is supported by support, which is made of hot-dipped galvanized steel or stainless steel material.
Accessories
Bolt, Nuts, & Washers
Hot Dipped galvanized steel, stainless steel or Dacromet material.Sealing Material
Sealing material have EPDM rubber strip, silicone cement.Covers
The tank cover shall be constructed from 1.5mm to 4.0mm of thickness hot-dipped galvanized steel or stainless steel or stainless steel sheet according to the requirement.Ladders and Level Indicator
Internal & external ladder shall be made of hot-dipped galvanized material, or stainless steel.
iTank HDG Brochure

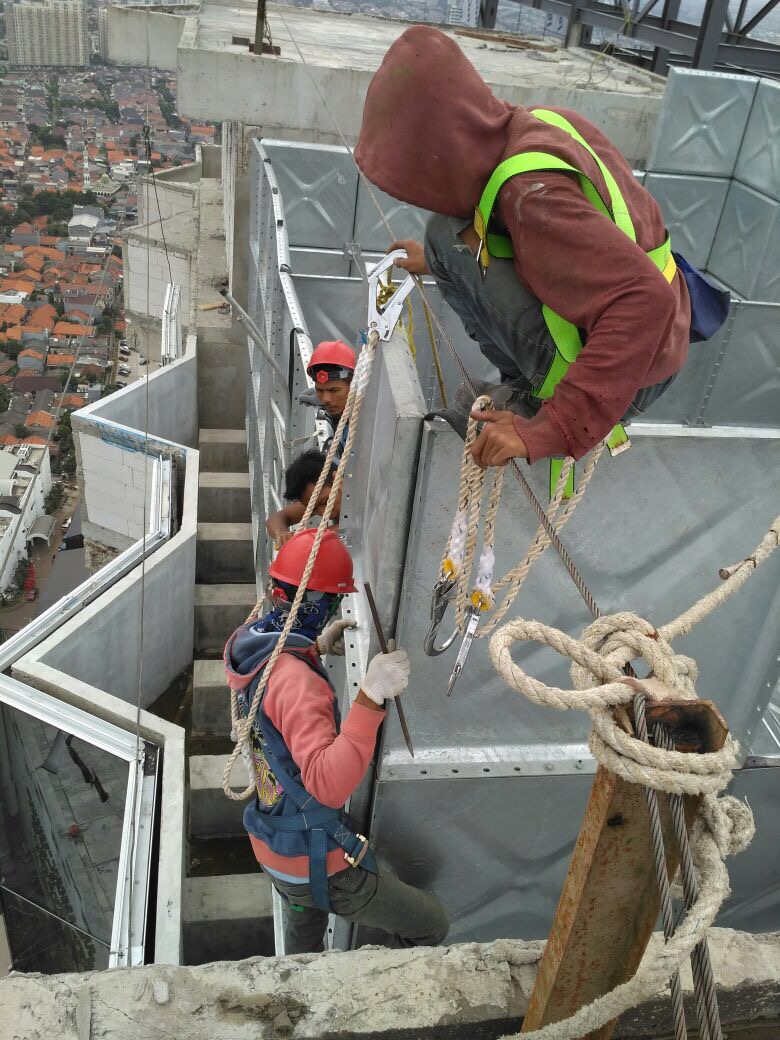

Project Instalation HDG TANK
Indirect Cylinders
STANDARD CONNECTIONS
- A Primary Flow
- B Primary Return
- C Secondary Flow
- D Secondary Return
- E Cold Feed
- F Thermometer
- G Safety Valve
- H Altitude Gauge
- J Drain
- L Manhole
- M Thermostat x2
- P Lifting Eyes
OPTIONAL CONNECTIONS
- R Vent
- S Bursting Disc
- T Anti-Vac Valve
Other connections available on request.
Standard Cradle/Leg height 150mm
Storage Calorifiers
STANDARD CONNECTIONS
- A Primary Flow or Steam
- B Primary Return or Condensate
- C Secondary Flow
- D Secondary Return
- E Cold Feed
- F Thermometer
- G Safety Valve
- H Altitude Gauge
- J Drain
- L Manhole
- M Thermostat x2
- P Lifting Eyes
OPTIONAL CONNECTIONS
- R Vent
- S Bursting Disc
- T Anti-Vacuum Valve
- U Typical Leg for Steel Vessel
- V Leg for Copper Vessel
- W Cradles
Other connections available on request.
Standard Cradle/Leg height 150mm
Water Storage Tank
Domestic Hot Water Systems
There are occasions when a storage tank
is required without an internal heater.
A typical example is a cylinder added
to a domestic hot water service to provide
extra storage capacity.
Chiller Systems
In this application storage tank are used
to prevent rapid cycling of the chiller sets.
The tank are located between the chillers
and distribution system.
Material Tangki
- Mild Steel SS400
- Mild Steel + Epoxy
- Mild Steel + Galvanized
- Stainless Steel 304
- Stainless Steel 316
Material Insulasi Tangki
- Rock wool / Glass wool
- Poly Urethane sheet
- Poly Urethane injection
Material Insulasi Tangki
- Galvalume / Zincalume
- Aluminium
- Stainless Steel
Tekanan Kerja Tangki
- Atmosperik
- 4 bar
- 6 bar
- 10 bar
Tekanan Uji Tangki
- Atmosperik = 1 bar
- Bertekanan = 1.5 x
tekanan kerja
Portable Hot Water Tank
Technical Specifications
| Model | T100-0 | T150-0 | T300-0 | T400-0 | T500-0 | Best usage for Heatpumps & Solar Heating | |||
| T-300-1 | T-400-1 | T-500-1 | |||||||
| Nominal Capacity | L | 100 | 150 | 300 | 400 | 500 | 300 | 400 | 500 |
| Number of Coil | - | - | - | - | - | 1 | 1 | 1 | |
| Heat Exchanger Area | m² | - | - | - | - | - | 1.4 | 1.4 | 1.7 |
| Heat Exchanger Length | m | - | - | - | - | - | 14 | 14 | 17 |
| Heat Exchanger Materials | - | - | - | - | - | Ø32X2.0 steel pipe with ceramic enamel coating | |||
| Polyurethane Insulation Thickness | mm | 40 | 50 | 40 | 50 | ||||
| Power Consumption (220~240V / 50Hz) | kW | 1.5 | 2.5 | 1.5 | 2.5 | ||||
| Temperature Setting Range | °C | 49-82 | 49-82 | ||||||
| Default Temperature | °C | 65 ±5 | 65 ±5 | ||||||
| Working Pressure | kPa | 1000 | 1000 | ||||||
| Test Pressure | kPa | 1700 | 1700 | ||||||
| Corrosion Protection | Blue Diamond Ceramic Enamel & Magnesium Anode | Blue Diamond Ceramic Enamel & Magnesium Anode | |||||||
| Water Connection | Inch | 3/4 | 3/4 | 3/4 | 1 | 1 | 3/4 | 1 | 1 |
| Nett Dimension | H / Ø | 1105 / 450 | 1185 / 520 | 1520 / 620 | 1580 / 710 | 1775 / 710 | 1520 / 620 | 1580 / 710 | 1775 / 710 |
| Package Dimension | P / L / T | 480/480/1200 | 480/480/1665 | 655/655/1625 | 740/740/1675 | 740/740/2015 | 655/655/1625 | 740/740/1675 | 740/740/2015 |
| Weight | kg | 58 | 63 | 100 | 117 | 138 | 105 | 122 | 145 |
